上节Java-NIO分析-7-NIO核心分析之Channel-Buffer和Selector介绍了ChannelBufferSelector的基本用法 有了感性认识之后,来看看Selector的底层是如何实现的。

1. Selector设计

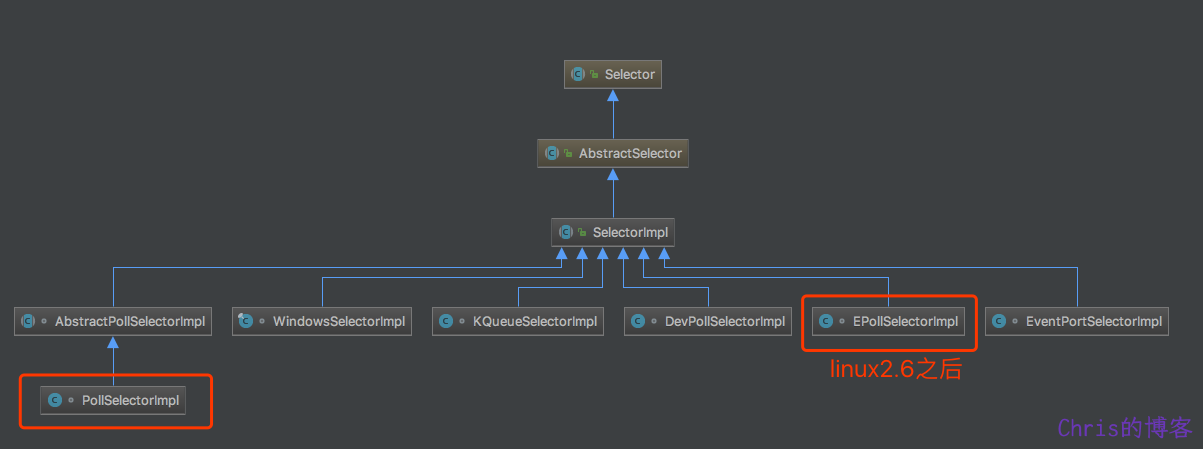

笔者下载得是openjdk8的源码, 画出类图

比较清晰得看到,openjdk中Selector的实现是SelectorImpl, 然后SelectorImpl又将职责委托给了具体的平台,比如图中框出的linux2.6以后才有的EpollSelectorImpl, Windows平台则是WindowsSelectorImpl, MacOSX平台是KQueueSelectorImpl.

从名字也可以猜到,openjdk肯定在底层还是用epoll,kqueueiocp这些技术来实现的I/O多路复用。前面 Java-NIO分析-3-I-O多路复用之select系统调用 ,Java-NIO分析-4-I-O多路复用之poll系统调用 , Java-NIO分析-5-I-O多路复用之epoll系统调用写了3篇来说明其用法,感兴趣的读者可以回头看看。

2. 获取Selector

众所周知,Selector.open()可以得到一个Selector实例,怎么实现的呢?

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
    // Selector.java
    public static Selector open() throws IOException {
        // 首先找到provider,然后再打开Selector
        return SelectorProvider.provider().openSelector();
    }

    // java.nio.channels.spi.SelectorProvider
        public static SelectorProvider provider() {
        synchronized (lock) {
            if (provider != null)
                return provider;
            return AccessController.doPrivileged(
                new PrivilegedAction<SelectorProvider>() {
                    public SelectorProvider run() {
                            if (loadProviderFromProperty())
                                return provider;
                            if (loadProviderAsService())
                                return provider;
                                // 这里就是打开Selector的真正方法
                            provider = sun.nio.ch.DefaultSelectorProvider.create();
                            return provider;
                        }
                    });
        }
    }

在openjdk中,每个操作系统都有一个sun.nio.ch.DefaultSelectorProvider实现,以solaris为例:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
    /**
     * Returns the default SelectorProvider.
     */
    public static SelectorProvider create() {
        // 获取OS名称
        String osname = AccessController
            .doPrivileged(new GetPropertyAction("os.name"));
        // 根据名称来创建不同的Selctor
        if (osname.equals("SunOS"))
            return createProvider("sun.nio.ch.DevPollSelectorProvider");
        if (osname.equals("Linux"))
            return createProvider("sun.nio.ch.EPollSelectorProvider");
        return new sun.nio.ch.PollSelectorProvider();
    }

如果系统名称是Linux的话,真正创建的是sun.nio.ch.EPollSelectorProvider。如果不是SunOS也不是Linux,就使用sun.nio.ch.PollSelectorProvider, 关于PollSelector有兴趣的读者自行了解下, 本文仅以实际常用的EpollSelector为例探讨。

打开sun.nio.ch.EPollSelectorProvider查看openSelector方法

1
2
3
    public AbstractSelector openSelector() throws IOException {
        return new EPollSelectorImpl(this);
    }

很直观,这样我们在Linux平台就得到了最终的Selector实现:sun.nio.ch.EPollSelectorImpl

3. EPollSelector如何进行select

epoll系统调用主要分为3个函数

  • epoll_create: 创建一个epoll fd,并开辟epoll自己的内核高速cache区,建立红黑树,分配好想要的size的内存对象,建立一个list链表,用于存储准备就绪的事件。
  • epoll_wait: 等待内核返回IO事件
  • epoll_ctl: 对新旧事件进行新增修改或者删除

3.1 Epoll fd的创建

EPollSelectorImpl的构造器代码如下:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
    EPollSelectorImpl(SelectorProvider sp) throws IOException {
        super(sp);
        // makePipe返回管道的2个文件描述符,编码在一个long类型的变量中
        // 高32位代表读 低32位代表写
        // 使用pipe为了实现Selector的wakeup逻辑
        long pipeFds = IOUtil.makePipe(false);
        fd0 = (int) (pipeFds >>> 32);
        fd1 = (int) pipeFds;
        // 新建一个EPollArrayWrapper
        pollWrapper = new EPollArrayWrapper();
        pollWrapper.initInterrupt(fd0, fd1);
        fdToKey = new HashMap<>();
    }

再看EPollArrayWrapper的初始化过程

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
    EPollArrayWrapper() throws IOException {
        // creates the epoll file descriptor
        // 创建epoll fd
        epfd = epollCreate();

        // the epoll_event array passed to epoll_wait
        int allocationSize = NUM_EPOLLEVENTS * SIZE_EPOLLEVENT;
        pollArray = new AllocatedNativeObject(allocationSize, true);
        pollArrayAddress = pollArray.address();

        // eventHigh needed when using file descriptors > 64k
        if (OPEN_MAX > MAX_UPDATE_ARRAY_SIZE)
            eventsHigh = new HashMap<>();
    }

    private native int epollCreate();

在初始化过程中调用了epollCreate方法,这是个native方法。 打开jdk/src/solaris/native/sun/nio/ch/EPollArrayWrapper.c

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
JNIEXPORT jint JNICALL
Java_sun_nio_ch_EPollArrayWrapper_epollCreate(JNIEnv *env, jobject this)
{
    /*
     * epoll_create expects a size as a hint to the kernel about how to
     * dimension internal structures. We can't predict the size in advance.
     */
     // 这里的size可以不指定,从Linux2.6.8之后,改用了红黑树结构,指定了大小也没啥用
    int epfd = epoll_create(256);
    if (epfd < 0) {
       JNU_ThrowIOExceptionWithLastError(env, "epoll_create failed");
    }
    return epfd;
}

可以看到最后还是使用了操作系统的api: epoll_create函数

3.2 Epoll wait等待内核IO事件

调用Selector.select(),最后会委托给各个实现的doSelect方法,限于篇幅不贴出太详细的,这里看下EpollSelectorImpldoSelect方法

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
    protected int doSelect(long timeout) throws IOException {
        if (closed)
            throw new ClosedSelectorException();
        processDeregisterQueue();
        try {
            begin();
            // 真正的实现是这行
            pollWrapper.poll(timeout);
        } finally {
            end();
        }
        processDeregisterQueue();
        int numKeysUpdated = updateSelectedKeys();

        // 以下基本都是异常处理
        if (pollWrapper.interrupted()) {
            // Clear the wakeup pipe
            pollWrapper.putEventOps(pollWrapper.interruptedIndex(), 0);
            synchronized (interruptLock) {
                pollWrapper.clearInterrupted();
                IOUtil.drain(fd0);
                interruptTriggered = false;
            }
        }
        return numKeysUpdated;
    }

然后我们去看pollWrapper.poll, 打开jdk/src/solaris/classes/sun/nio/ch/EPollArrayWrapper.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
    int poll(long timeout) throws IOException {
        updateRegistrations();
        // 这个epollWait是不是有点熟悉呢?
        updated = epollWait(pollArrayAddress, NUM_EPOLLEVENTS, timeout, epfd);
        for (int i=0; i<updated; i++) {
            if (getDescriptor(i) == incomingInterruptFD) {
                interruptedIndex = i;
                interrupted = true;
                break;
            }
        }
        return updated;
    }

    private native int epollWait(long pollAddress, int numfds, long timeout,
                                 int epfd) throws IOException;

epollWait也是个native方法,打开c代码一看:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
JNIEXPORT jint JNICALL
Java_sun_nio_ch_EPollArrayWrapper_epollWait(JNIEnv *env, jobject this,
                                            jlong address, jint numfds,
                                            jlong timeout, jint epfd)
{
    struct epoll_event *events = jlong_to_ptr(address);
    int res;

    if (timeout <= 0) {           /* Indefinite or no wait */
        // 发起epoll_wait系统调用等待内核事件
        RESTARTABLE(epoll_wait(epfd, events, numfds, timeout), res);
    } else {                      /* Bounded wait; bounded restarts */
        res = iepoll(epfd, events, numfds, timeout);
    }

    if (res < 0) {
        JNU_ThrowIOExceptionWithLastError(env, "epoll_wait failed");
    }
    return res;
}

可以看到,最后还是发起的epoll_wait系统调用.

3.3 epoll control以及openjdk对事件管理的封装

JDK中对于注册到Selector上的IO事件关系是使用SelectionKey来表示,代表了Channel感兴趣的事件,如Read,Write,Connect,Accept.

调用Selector.register()时均会将事件存储到EpollArrayWrapper的成员变量eventsLoweventsHigh

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

    // events for file descriptors with registration changes pending, indexed
    // by file descriptor and stored as bytes for efficiency reasons. For
    // file descriptors higher than MAX_UPDATE_ARRAY_SIZE (unlimited case at
    // least) then the update is stored in a map.
    // 使用数组保存事件变更, 数组的最大长度是MAX_UPDATE_ARRAY_SIZE, 最大64*1024
    private final byte[] eventsLow = new byte[MAX_UPDATE_ARRAY_SIZE];
    // 超过数组长度的事件会缓存到这个map中,等待下次处理
    private Map<Integer,Byte> eventsHigh;


    /**
     * Sets the pending update events for the given file descriptor. This
     * method has no effect if the update events is already set to KILLED,
     * unless {@code force} is {@code true}.
     */
    private void setUpdateEvents(int fd, byte events, boolean force) {
        // 判断fd和数组长度
        if (fd < MAX_UPDATE_ARRAY_SIZE) {
            if ((eventsLow[fd] != KILLED) || force) {
                eventsLow[fd] = events;
            }
        } else {
            Integer key = Integer.valueOf(fd);
            if (!isEventsHighKilled(key) || force) {
                eventsHigh.put(key, Byte.valueOf(events));
            }
        }
    }

上面看到EpollArrayWrapper.poll()的时候, 首先会调用updateRegistrations

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
    /**
     * Returns the pending update events for the given file descriptor.
     */
    private byte getUpdateEvents(int fd) {
        if (fd < MAX_UPDATE_ARRAY_SIZE) {
            return eventsLow[fd];
        } else {
            Byte result = eventsHigh.get(Integer.valueOf(fd));
            // result should never be null
            return result.byteValue();
        }
    }

    /**
     * Update the pending registrations.
     */
    private void updateRegistrations() {
        synchronized (updateLock) {
            int j = 0;
            while (j < updateCount) {
                int fd = updateDescriptors[j];
                // 从保存的eventsLow和eventsHigh里取出事件
                short events = getUpdateEvents(fd);
                boolean isRegistered = registered.get(fd);
                int opcode = 0;

                if (events != KILLED) {
                    // 判断操作类型以传给epoll_ctl
                    // 没有指定EPOLLET事件类型
                    if (isRegistered) {
                        opcode = (events != 0) ? EPOLL_CTL_MOD : EPOLL_CTL_DEL;
                    } else {
                        opcode = (events != 0) ? EPOLL_CTL_ADD : 0;
                    }
                    if (opcode != 0) {
                        // 熟悉的epoll_ctl
                        epollCtl(epfd, opcode, fd, events);
                        if (opcode == EPOLL_CTL_ADD) {
                            registered.set(fd);
                        } else if (opcode == EPOLL_CTL_DEL) {
                            registered.clear(fd);
                        }
                    }
                }
                j++;
            }
            updateCount = 0;
        }
    }
    private native void epollCtl(int epfd, int opcode, int fd, int events);

在获取到事件之后将操作委托给了epollCtl,这又是个native方法,打开相应的c代码一看:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
JNIEXPORT void JNICALL
Java_sun_nio_ch_EPollArrayWrapper_epollCtl(JNIEnv *env, jobject this, jint epfd,
                                           jint opcode, jint fd, jint events)
{
    struct epoll_event event;
    int res;

    event.events = events;
    event.data.fd = fd;

    // 发起epoll_ctl调用来进行IO事件的管理
    RESTARTABLE(epoll_ctl(epfd, (int)opcode, (int)fd, &event), res);

    /*
     * A channel may be registered with several Selectors. When each Selector
     * is polled a EPOLL_CTL_DEL op will be inserted into its pending update
     * list to remove the file descriptor from epoll. The "last" Selector will
     * close the file descriptor which automatically unregisters it from each
     * epoll descriptor. To avoid costly synchronization between Selectors we
     * allow pending updates to be processed, ignoring errors. The errors are
     * harmless as the last update for the file descriptor is guaranteed to
     * be EPOLL_CTL_DEL.
     */
    if (res < 0 && errno != EBADF && errno != ENOENT && errno != EPERM) {
        JNU_ThrowIOExceptionWithLastError(env, "epoll_ctl failed");
    }
}

原来还是我们的老朋友epoll_ctl. 有个小细节是jdk没有指定ET(边缘触发)还是LT(水平触发),所以默认会用LT:)

AbstractSelectorImpl中有3个set保存事件

1
2
3
4
5
6
7
8
    // Public views of the key sets
    // 注册的所有事件
    private Set<SelectionKey> publicKeys;             // Immutable
    // 内核返回的IO事件封装,表示哪些fd有数据可读可写
    private Set<SelectionKey> publicSelectedKeys;     // Removal allowed, but not addition

    // 取消的事件
    private final Set<SelectionKey> cancelledKeys = new HashSet<SelectionKey>();

EpollArrayWrapper.poll调用完成之后, 会调用updateSelectedKeys来更新上面的仨set

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
    private int updateSelectedKeys() {
        int entries = pollWrapper.updated;
        int numKeysUpdated = 0;
        for (int i=0; i<entries; i++) {
            int nextFD = pollWrapper.getDescriptor(i);
            SelectionKeyImpl ski = fdToKey.get(Integer.valueOf(nextFD));
            // ski is null in the case of an interrupt
            if (ski != null) {
                int rOps = pollWrapper.getEventOps(i);
                if (selectedKeys.contains(ski)) {
                    if (ski.channel.translateAndSetReadyOps(rOps, ski)) {
                        numKeysUpdated++;
                    }
                } else {
                    ski.channel.translateAndSetReadyOps(rOps, ski);
                    if ((ski.nioReadyOps() & ski.nioInterestOps()) != 0) {
                        selectedKeys.add(ski);
                        numKeysUpdated++;
                    }
                }
            }
        }
        return numKeysUpdated;
    }

代码很直白,拿出事件对set比对操作。

4. 总结

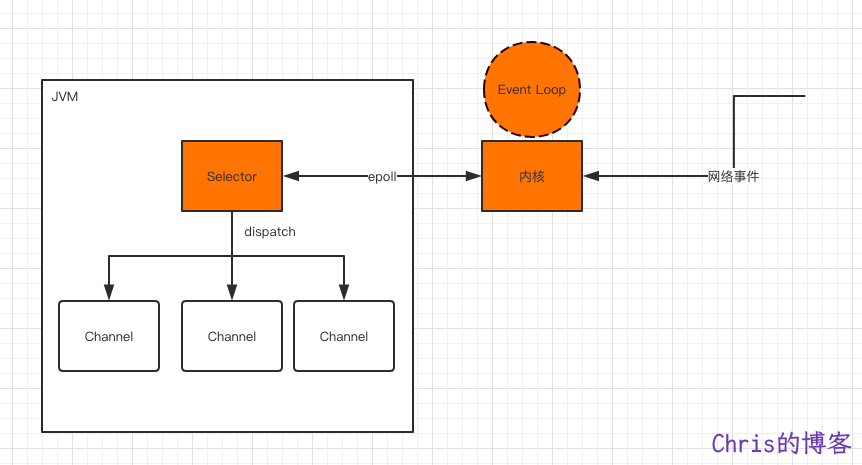

jdk中Selector是对操作系统的IO多路复用调用的一个封装,在Linux中就是对epoll的封装。epoll实质上是将event loop交给了内核,因为网络数据都是首先到内核的,直接内核处理可以避免无谓的系统调用和数据拷贝, 性能是最好的。

jdk中对IO事件的封装是SelectionKey, 保存Channel关心的事件。

至此对Selector的前后实现比较清晰了.
